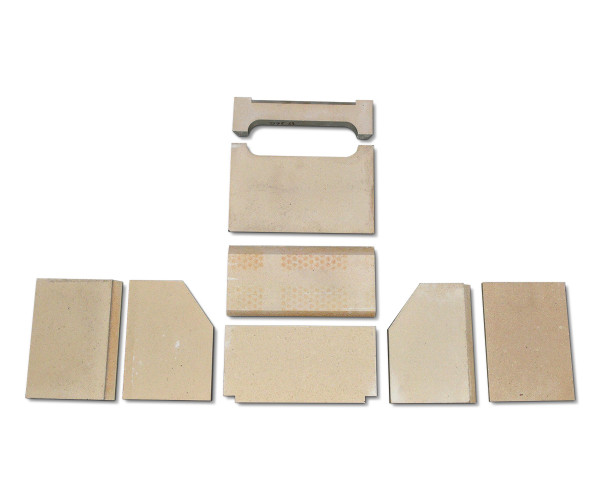

Feuerraumauskleidung |
Brennraumsteine Material Schamotte Seitenstein links hinten (165/185 x 253/908 x 155 x 30 mm) |
Seitenstein rechts hinten (165/185 x 253/908 x 155 x 30 mm) Seitenstein links vorne (253 x 183 x 32 mm) |
Seitenstein rechts vorne (253 x 183 x 32 mm) Rückwandstein unten (160 x 320 x 32 mm) |
Rückwandstein oben (320 x 155 x 30 mm) Zugumlenkung hinten (320 x 208 x 32 mm) |
Zugumlenkung vorne (320 x 85 x 32 mm) Positionen 33 |
34 |
37 |
39 |
2 x 39 |
2 x 40 |
41 in der Explosionszeichnung |
